| Image |
- Brightness
- 8,500 center (8,200 ANSI) lumens
- Contrast
- Uniformity
|
| Display |
|
| Lamp |
- Type
- Life
- Up to 2000 hours in standard mode
- Up to 4000 hours in eco mode
- Up to 500 hours in portrait mode
|
| Inputs |
-
Standard
- Computer D-sub 15 pin mini jack x1
- 3G-SDI x1
- BNC connector x1 (composite)
- HDMI connector x2
- DVI-D connector x1
- RJ-45 x1 (HD Base-T)
- D-sub 9 pin x1 (RS232c)
- RJ-45 x1 (LAN)
- USB type A connector x1 (optional wireless USB or PC-less)
- Wired remote control (3.5mm)
-
Signals
- 525i(480i)
- 525p(480p)
- 625i(576i)
- 1125i(1080i @ 50/60)
- 750p(720p @ 50/60)
- 1125p(1080p @ 50/60)
- Pixel Clock
|
| Output |
- Standard
- Computer out D-sub 15 pin mini jack x1
- Wired remote control (3.5mm)
- Control & Networking
- RJ-45 x1 (LAN)
- RJ-45 x1 (HD Base-T)
- D-sub 9 pin x1 (RS232c)
|
| Accessories |
- Standard
- Power cord (US cord, 3m) / (Euro cord, 3m)
- Power cord (China cord, 3m Only For China Models)
- RGB cable (2m)
- Wireless remote control / AA” batteries x2
- Adapter cover
- Ferrite core and band x2
- Cable tie x2
- User’s manual
-
User’s manual CD x1
- Safety guide
- Quick setup guide
- Network quick setup guide
- Operating guide
- Network guide
- Instant stack guide
- Technical guide
- Software license agreement
- Optional
- Replacement lamp – P/N 003-004774-XX
- Replacement hybrid filter – P/N 003-004775-XX
- Optional wireless dongle (USB) – P/N 121-116109-XX
- Replacement remote
|
| Enhanced feature sets |
- 2 HDMI input
- eClarity & HDCR
- Built in ultra rich color wheel
- HD base T
- Portrait mode capable
- Edge blending
- Geometric correction
- Status monitor display
- Motorized zoom , focus and lens shift with memory
- PC-less presentation
- 3G-SDI
|
| Power requirements (Dual lamp mode) |
- Operating Voltage
- Current Rating
- 10.5A +10% or less at 110V-120V AC
- 5.2A+10% or less at 220V-240V AC
- Power Consumption
- AC110 – 120V, 50/60Hz 1060W
- AC220 – 240V, 50/60Hz 990W
- Less than 0.5W @ standby with saving. (AC230V):
- Saving mode disables MONITOR OUT, AUDIO OUT, speaker sound, LAN communication and RS232C control except power ON command in standby
- Thermal Dissipation
- 3618BTU(110-120V)
- 3379BTU(220-240V)
|
| Dimensions |
- Dimensions (LxWxH) (without lens and feet in min. position)
- 463 (L) x537(W) x 174 (H) mm
- 18.2 (L) x 21.1(W) x 6.9 (H) in.
- Net Weight (without lens)
- Shipping Dimensions
- 561 (L) x 743 (W) x 315 (H) mm
- 22.1 (L) x 29.3 (W) x 12.4 (H) ins
- Shipping Weight
|
| Operating Environment |
- Noise
- Standard mode: 36 dBA / 29 dBA Eco mode
- Temperature
- 32-113°F (0-45°C) from sea level to 1600m (5249 feet)
- 32-104°F (0-40°C) from 1600m (5249 feet) to 3048m (10000 feet)
- Altitude
- 0 to 10000 feet (0 to 3048m)
- Humidity
|
| Regulatory |
- This product conforms to the following regulations related to product safety, environmental requirements and electromagnetic compatibility (EMC)
-
- FCC, Part 15, Subpart B, Class A
- EN55022/CISPR22 Class A
- ICES/NMB003 (A)
- EN55024 / CISPR24
- IEC 60950-1
- UL 60950-1
- EN 60950-1
- CAN/CSA C22.2 No. 60950-1
- Directive 2011/65/EU (RoHS)
- Directive 2012/19/EU (WEEE)
- EU Regulation (EC) No. 1907/2006 (REACH)
- Certifications marks (check with Christie for latest update): cULus (Canada & US), CE (EU), CCC (China), EAC (Russia), RCM (Australia and New Zealand), India (BIS), Mexico (NOM), Saudi Arabia, South Africa
|
| Limited warranty |
- 3 years parts and labor (including light engine)
- Contact an authorized Christie representative for full details of our limited warranty
|

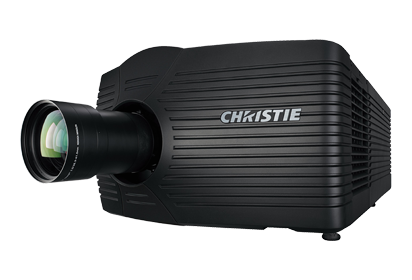

The Christie® Q Series takes projectors to a new level of high-brightness to bring you the industry’s highest-quality 1-chip DLP® projector.
- proven DLP® technology
- excellent image quality
- reliability and versatility
- energy-saving features
- low maintenance costs
- high performance features
- the best warranty and support in the industry
